192 - Digital Multimeter, Auto/Manual Ranging, Bargraph

Features:
Large 50,000 count display increases resolution and improves accuracy (1.7" x 2.75", 43mm x 70mm
Triple Display shows more than one reading simultaneously
51 Segment Analog Bar Graph to catch fast AC fluctuations
Back Light (LED Type) allows viewing in any light condition
Auto Range automatically selects the best range for the measurement
Separate battery and fuse compartment for easy replacement
True RMS needed to accurately measure nonsinusoidal AC voltage and current waveforms found on controls and circuits
Increased safety with Silicone rubber 1,000V CAT III, 600V CAT IV, 10A test leads (CE & cUL listed)
Auto Power Off DMM will automatically power down after approximately 15 minutes of inactivity to extend battery life. Disable Auto Power Off: Hold down the REC button and turn the meter on.
Diode Test displays approximate forward bias voltage
Continuity and buzzer to check for opens and shorts

SPECIAL FEATURES AVAILABLE WITH THIS MODEL:
Time Stamp Logging: logs up to 100 readins (min/max/avg) with a time stamp
Pulse Width: measures the duration of a pulse
Duty Cycle: diplays the total "on" time of a component
Inductance: measures the value of inductors and coils
Conductance: meausres the ability of a material to conduct electricity
Temparature: for use in HVAC, electrical and electronic applications
dB Readout: displays voltage level without regard for Impedance

STANDARD (Included) ACCESSORIES
A190 : Protective Boot
A085 : UL Listed Silicone Test Lead Set with Alligator Clips (Screw On)
A104 : 0.5 Amp/600V UL Ceramic Fuse for 100 series DMMs (2 each)
A110 : 10 Amp/600V UL Ceramic Fuse for 100 series DMMs (2 each)

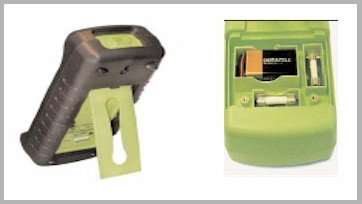

Tilt stand, and separate battery and fuse compartment are standard features on all 190 seriies DMMs
